PERI tie systems: The DK and SK tie systems serve to ensure subsequent, reliable sealing of tie points.

PERI Ankarteknik

Vatten- och gastäta, brandsäkra och ljudisolerade samt godkänd för dricksvatten

Kostnaderna för stag, speciellt arbetskostnaden för montering, är en viktig del av formsättningen. Rätt val av stag är viktigt för byggnader med speciella krav som exempelvis reningsverk där vattentät gjutning är nödvändig.

DK staglösning är:

  • Vattentät
  • Gastäta
  • Brandhärdig
  • Ljudisolerad
  • Lämplig för arkitektonisk betong

SK staglösning är:

  • vattentät
  • gastäta
  • brandhärdig
  • ljudisolerad
  • lämplig för valv och arkitektoniska betong

PERI Ankarteknik i detalj

  • PERI Tie Technology: For all wall formwork - here: DK sealing cone system
    Garanterat läckagesäker

    Vatten- och gastäta, brandsäkra och ljudisolerade samt godkänd för dricksvatten.

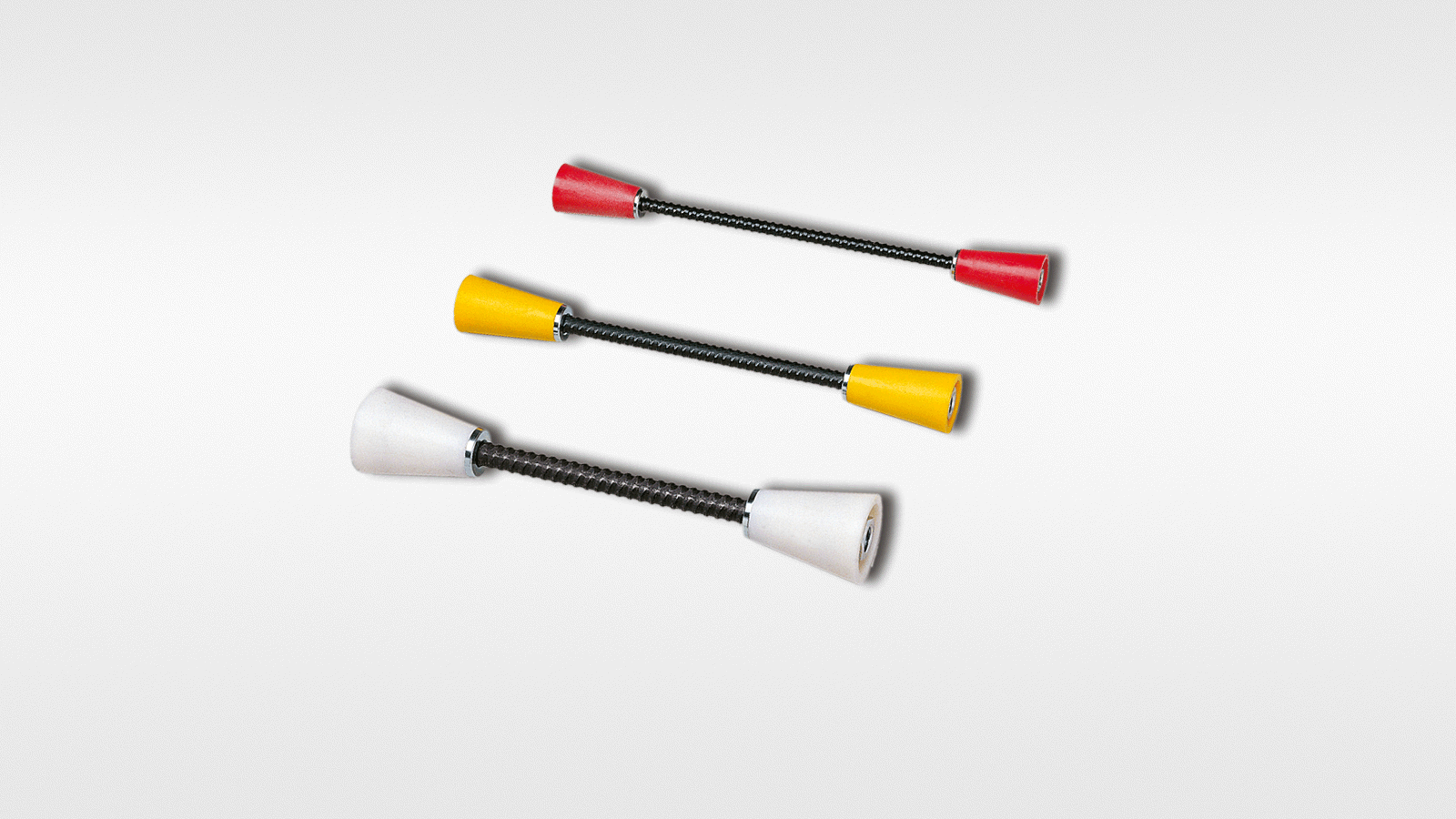

  • PERI Tie Technology: For all wall formwork - here: The SK tie cone system
    Lättillgänglig

    Olika diamterar finns tillgängliga

Produktdatablad

Tekniska specifikationer
Material
Betongkonor och tätningslim

Tekniska specifikationer
Material
Betongkonor och tätningslim
Standardapplikationer
Kompatibel med
MAXIMO väggform, VARIO GT 24 pelarform, Rundlfex

Standardapplikationer
Kompatibel med
MAXIMO väggform, VARIO GT 24 pelarform, Rundlfex

Variant DK

Tekniska specifikationer
Systemtyp
DK anchor technology
Dimensioner
Dimensioner: 61.5 mm diameter for all variants (measured at the widest diameter point),,
Höjd: 35 mm to 55 cm (depending on DK sealing cone)
Rostfritt och ytbeläggning
Waterproof concrete, noise and fire protection walls for wall thicknesses up to 60 cm
Förberedelse
Magnetic cone for MAXIMO, or two reusable DK sealing cones with a sleeve and a reusable tie rod
Last
Stelhet: Hardness: 100 N/mm² on average
Övrigt
Impermeable to water, impermeable to gas, fire-resistant, soundproof

Tekniska specifikationer
Systemtyp
DK anchor technology
Dimensioner
Dimensioner: 61.5 mm diameter for all variants (measured at the widest diameter point),,
Höjd: 35 mm to 55 cm (depending on DK sealing cone)
Rostfritt och ytbeläggning
Waterproof concrete, noise and fire protection walls for wall thicknesses up to 60 cm
Förberedelse
Magnetic cone for MAXIMO, or two reusable DK sealing cones with a sleeve and a reusable tie rod
Last
Stelhet: Hardness: 100 N/mm² on average
Övrigt
Impermeable to water, impermeable to gas, fire-resistant, soundproof
Standardapplikationer
Övrigt
Suitable for exposed concrete

Standardapplikationer
Övrigt
Suitable for exposed concrete

Variant SK

Tekniska specifikationer
Dimensioner
Dimensioner: 61 mm to 105 mm in diameter (measured at the widest diameter point),
Höjd: 105 mm to 138 mm (depending on SK sealing cone)
Material
Concrete cones and sealing adhesive
Rostfritt och ytbeläggning
Waterproof concrete, sound and fire resistant F90 for wall thicknesses up to 60 cm, impermeable to gas
Last
Drag- och tryckkraft: 90 - 250 kN
Övrigt
Reusable SK cones connected to duct and reusable tie rod or a concreted tie rod

Tekniska specifikationer
Dimensioner
Dimensioner: 61 mm to 105 mm in diameter (measured at the widest diameter point),
Höjd: 105 mm to 138 mm (depending on SK sealing cone)
Material
Concrete cones and sealing adhesive
Rostfritt och ytbeläggning
Waterproof concrete, sound and fire resistant F90 for wall thicknesses up to 60 cm, impermeable to gas
Last
Drag- och tryckkraft: 90 - 250 kN
Övrigt
Reusable SK cones connected to duct and reusable tie rod or a concreted tie rod
Standardapplikationer
Övrigt
Suitable for security wings and fair-faced concrete

Standardapplikationer
Övrigt
Suitable for security wings and fair-faced concrete
